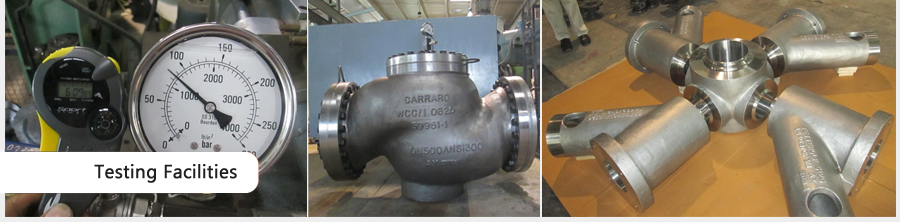

Testing Facilities
| Lab | |
| Chemical Analysis | Spectro Lab Multiple optical Spectro meter 24 Elements with 32 channel. Special Features: Ultra low nitrogen from 0.0005% onwards. With Provision for Oxygen. Complete facilities for Wet Analysis Complete facilities for Sand Analysis |
| Mechanical Testing | Digital 40 Ton Universal Testing Machine with extensometer Calibrated as per ISO: 7500-1 / IS 1828-1 in presence of TUV Nord,Llyods register & IBR. With Hot Tensile Testing Facility. |
| Impact Machine | 300 Joules Impact Machine Calibrated as per
ISO 148-2 in presence of TUV Nord & Lloyds Register
With Digital Profile Projector. Lateral Expansion Gauge - 1 No |
| Hardness test | Brinell hardness testing machine. 2 Nos -3000 Kg Load 50 Kg Vicker Hardness Testing Machine - 1no. Portable King Hardness Test - 1No. (3000 Kg Load) |
| Corrosion test | IGC test facilities for EN & ASTM Specification Pitting Corrosion testing facility. |
| IGC test | In house IGC testing facilities. |
| NDT | |
| Radiography Test Ultrasonic test |
Ir 192 , Co60 and Betatron Radiography out sourced from approved service providers |
| Ultrasonic test | In House Ultrasonic testing facility |
| Magnetic Particle Test | 5000 Amps MPI Machine - 2 Nos in Wet florescent MP testing by Head shot, coil and central conduct method |
| Dye Penetrate Test | DP Test by Water washable and solvent method |
| NDT Evaluation | NDT Evaluation by in house ASNT/ISNT Level II /EN 473 Level II qualified personals, RT Film Viewer |
| Inspection | |
| Granite Surface table | 1425 X 975mm- 1 No. Mitutoya Make, |
| Inspection Instruments | 0-99mm LCD type ultrasonic thickness gauge. Pistol Caliper, Steel rule, vernier, Hook vernier, height gauge, Inside & outside caliper Hydro testing facility |
| Rust Prevention | Radiation Check Meter for radioactivity contamination Testing Manganese and Zinc Phosphating Facility for Raw and Machined Carbon Steel and Low Alloy Steel Castings. Rust Preventive Oil to prevent rust. |
| Packing | |
| Sea worthy packing with Fumigated Corrugated Boxes and Card Board sheets. Machined Castings are covered with end cover and bubble sheet and special packings. | |
| MACHINING | |
| Machining Inhouse & Out sourced at approved service providers. | |
| CNC | Vertical Turret Lathe (Hawachion) -550R -2 Nos, |
| CNC | Vertical Machining ( Doosan ) Centre 1 No -DNM650 with 4th axis. |
| CNC | Turning centre (Haas) - 300 ø chuck. |
| Conventional lathe | 7 Nos. |
| Radial Drilling machine | 1 No. |
| Conventional VTL | 1 No. |
| Horizontal conventional boring machine | 1 No (100ø spindle) |
| Crane | 3Ton capacity EOT crane - 1 No. |
| Crane | 2Ton capacity EOT crane - 1 No. |
| Surface table | 2 No's. |
| Trimos | 1 No and necessary measuring instruments. |
| Surface Roughness Tester | 1 No. |
